Transistor
Transistor is usually composed of a Photophore (infrared light-emitting diode) and a light receiver (photosensitive transistor).
Advantages: Small size, long lifespan, contactless, strong anti-interference ability, high voltage resistance between output and input insulation, unidirectional signal transmission, etc., widely used in electronic products.
Application field: The product is used in electrical insulation, level conversion, interstage coupling, switching circuits, signal isolation, pulse signal amplification, long-distance signal transmission, and input/output interfaces. In a switching power supply, a linear optocoupler can be used to form a voltage feedback circuit, which can adjust the control terminal current to change the duty cycle and achieve precise voltage regulation
Product List
Total：18
-
CYPC357Transistor Package：SOP-4
Manufacturer：OCICCTR Rank：A-DCTR Min( % )：80%CTR Max(%)：600%Vce (V)：80VViso @1min (Vrms)：3750VrmsPackage：SOP-4Manufacturer：OCICCTR Rank：APackageCTR Min( % )：80%CTR Max(%)：160%CTR @IF(mA)：5mACTR @Vce(V)：5VVce (V)：80VViso @1min (Vrms)：3750Vrms
-

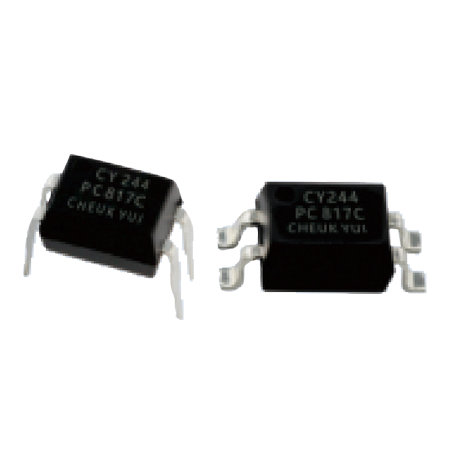

CYPC817Transistor Package：DIP-4/SMD-4
Manufacturer：OCICCTR Rank：A-DCTR Min( % )：80%CTR Max(%)：600%Vce (V)：80VViso @1min (Vrms)：5000VrmsPackage：DIP-4/SMD-4Manufacturer：OCICCTR Rank：APackageCTR Min( % )：80%CTR Max(%)：160%CTR @IF(mA)：5mACTR @Vce(V)：5VVce (V)：80VViso @1min (Vrms)：5000Vrms
-
CYPS2501Transistor Package：DIP-4/SMD-4
Manufacturer：OCICCTR Rank：K,L,M,D,H,W,Q,NCTR Min( % )：300%CTR Max(%)：600%Vce (V)：80VViso @1min (Vrms)：5000VrmsPackage：DIP-4/SMD-4Manufacturer：OCICCTR Rank：KPackageCTR Min( % )：300%CTR Max(%)：600%CTR @IF(mA)：5mACTR @Vce(V)：5VVce (V)：80VViso @1min (Vrms)：5000Vrms
-
CYPS2701Transistor Package：SOP-4
Manufacturer：OCICCTR Rank：M,P,L,K,LKCTR Min( % )：50%CTR @Vce(V)：5VVce (V)：80VViso @1min (Vrms)：3750VrmsPackage：SOP-4Manufacturer：OCICCTR Rank：MPackageCTR Min( % )：50%CTR Max(%)：150%CTR @IF(mA)：5mACTR @Vce(V)：5VVce (V)：80VViso @1min (Vrms)：3750Vrms
-
CYTLP1019Transistor Package：LSOP-4
Manufacturer：OCICCTR Rank：A-DCTR Min( % )：80%CTR Max(%)：400%Vce (V)：80VViso @1min (Vrms)：5000VrmsPackage：LSOP-4Manufacturer：OCICCTR Rank：APackageCTR Min( % )：80%CTR Max(%)：160%CTR @IF(mA)：5mACTR @Vce(V)：5VVce (V)：80VViso @1min (Vrms)：5000Vrms
-
CYTLP181Transistor Package：SOP-4
Manufacturer：OCICCTR Rank：Y,GB,GR,BLCTR Min( % )：50%CTR Max(%)：600%Vce (V)：80VViso @1min (Vrms)：3750VrmsPackage：SOP-4Manufacturer：OCICCTR Rank：YPackageCTR Min( % )：50%CTR Max(%)：150%CTR @IF(mA)：5mACTR @Vce(V)：5VVce (V)：80VViso @1min (Vrms)：3750Vrms
-
CYTLP184Transistor Package：SOP-4
Manufacturer：OCICCTR Rank：Y,GB,GR,BLCTR Min( % )：50%CTR Max(%)：600%Vce (V)：80VViso @1min (Vrms)：3750VrmsPackage：SOP-4Manufacturer：OCICCTR Rank：YPackageCTR Min( % )：50%CTR Max(%)：150%CTR @IF(mA)：5mACTR @Vce(V)：5VVce (V)：80VViso @1min (Vrms)：3750Vrms
-
CYTLP185Transistor Package：SOP-4
Manufacturer：OCICCTR Rank：Y,GB,GR,BLCTR Min( % )：50%CTR Max(%)：400%Vce (V)：80VViso @1min (Vrms)：3750VrmsPackage：SOP-4Manufacturer：OCICCTR Rank：YPackageCTR Min( % )：50%CTR Max(%)：150%CTR @IF(mA)：5mACTR @Vce(V)：5VVce (V)：80VViso @1min (Vrms)：3750Vrms
-
CYTLP291Transistor Package：SSOP-4
Manufacturer：OCICCTR Rank：Y,GR,BLCTR Min( % )：50%CTR Max(%)：600%Vce (V)：80VViso @1min (Vrms)：3750VrmsPackage：SSOP-4Manufacturer：OCICCTR Rank：YPackageCTR Min( % )：50%CTR Max(%)：150%CTR @IF(mA)：5mACTR @Vce(V)：5VVce (V)：80VViso @1min (Vrms)：3750Vrms
-
CYTLP521Transistor Package：DIP-4/SMD-4
Manufacturer：OCICCTR Rank：Y,GB,GR,BLCTR Min( % )：50%CTR Max(%)：600%Vce (V)：80VViso @1min (Vrms)：5000VrmsPackage：DIP-4/SMD-4Manufacturer：OCICCTR Rank：YPackageCTR Min( % )：50%CTR Max(%)：150%CTR @IF(mA)：5mACTR @Vce(V)：5VVce (V)：80VViso @1min (Vrms)：5000Vrms
-
CYTLP785Transistor Package：DIP-4/SMD-4
Manufacturer：OCICCTR Rank：Y,GB,GR,BLCTR Min( % )：50%CTR Max(%)：600%Vce (V)：80VViso @1min (Vrms)：5000VrmsPackage：DIP-4/SMD-4Manufacturer：OCICCTR Rank：YPackageCTR Min( % )：50%CTR Max(%)：150%CTR @IF(mA)：5mACTR @Vce(V)：5VVce (V)：80VViso @1min (Vrms)：5000Vrms
-
CY4N25Transistor Package：DIP-6/SMD-6
Manufacturer：OCICCTR Rank：CY4N25PackageCTR Min( % )：20%CTR Max(%)：-%Vce (V)：30VViso @1min (Vrms)：5000VrmsPackage：DIP-6/SMD-6Manufacturer：OCICCTR Rank：CY4N25PackageCTR Min( % )：20%CTR Max(%)：-%CTR @IF(mA)：10mACTR @Vce(V)：10VVce (V)：30VViso @1min (Vrms)：5000Vrms
-
CY4N26Transistor Package：DIP-6/SMD-6
Manufacturer：OCICCTR Rank：CY4N26PackageCTR Min( % )：20%CTR Max(%)：-%Vce (V)：30VViso @1min (Vrms)：5000VrmsPackage：DIP-6/SMD-6Manufacturer：OCICCTR Rank：CY4N26PackageCTR Min( % )：20%CTR Max(%)：-%CTR @IF(mA)：10mACTR @Vce(V)：10VVce (V)：30VViso @1min (Vrms)：5000Vrms
-
CY4N27Transistor Package：DIP-6/SMD-6
Manufacturer：OCICCTR Rank：CY4N27PackageCTR Min( % )：10%CTR Max(%)：-%Vce (V)：30VViso @1min (Vrms)：5000VrmsPackage：DIP-6/SMD-6Manufacturer：OCICCTR Rank：CY4N27PackageCTR Min( % )：10%CTR Max(%)：-%CTR @IF(mA)：10mACTR @Vce(V)：10VVce (V)：30VViso @1min (Vrms)：5000Vrms
-
CY4N28Transistor Package：DIP-6/SMD-6
Manufacturer：OCICCTR Rank：CY4N28PackageCTR Min( % )：10%CTR Max(%)：-%Vce (V)：30VViso @1min (Vrms)：5000VrmsPackage：DIP-6/SMD-6Manufacturer：OCICCTR Rank：CY4N28PackageCTR Min( % )：10%CTR Max(%)：-%CTR @IF(mA)：10mACTR @Vce(V)：10VVce (V)：30VViso @1min (Vrms)：5000Vrms
-
CY4N35Transistor Package：DIP-6/SMD-6
Manufacturer：OCICCTR Rank：CY4N35PackageCTR Min( % )：100%CTR Max(%)：-%Vce (V)：30VViso @1min (Vrms)：5000VrmsPackage：DIP-6/SMD-6Manufacturer：OCICCTR Rank：CY4N35PackageCTR Min( % )：100%CTR Max(%)：-%CTR @IF(mA)：10mACTR @Vce(V)：10VVce (V)：30VViso @1min (Vrms)：5000Vrms
-
CY4N36Transistor Package：DIP-6/SMD-6
Manufacturer：OCICCTR Rank：CY4N36PackageCTR Min( % )：100%CTR Max(%)：-%Vce (V)：30VViso @1min (Vrms)：5000VrmsPackage：DIP-6/SMD-6Manufacturer：OCICCTR Rank：CY4N36PackageCTR Min( % )：100%CTR Max(%)：-%CTR @IF(mA)：10mACTR @Vce(V)：10VVce (V)：30VViso @1min (Vrms)：5000Vrms
-
CY4N37Transistor Package：DIP-6/SMD-6
Manufacturer：OCICCTR Rank：CY4N37PackageCTR Min( % )：100%CTR Max(%)：-%Vce (V)：30VViso @1min (Vrms)：5000VrmsPackage：DIP-6/SMD-6Manufacturer：OCICCTR Rank：CY4N37PackageCTR Min( % )：100%CTR Max(%)：-%CTR @IF(mA)：10mACTR @Vce(V)：10VVce (V)：30VViso @1min (Vrms)：5000Vrms
